Detailed Description

Trophies for swadge modes.

Author: Jerem.nosp@m.y.St.nosp@m.intzc.nosp@m.um@g.nosp@m.mail..nosp@m.com

Date: 2025-05-22

Overview

Welcome to the swadge's trophy system! This fun addition to your game gives players an extrinsic reason to keep playing your game again and again.

The trophies work similarly to a mix of the big three: Valve's Achievements, Xbox's Gamer Score, and Playstation's Trophies. There are several different unlock conditions that can be specifed, there's minimal overhead on the swadge (when set up properly) and trophies give the player points that they can use as bragging rights.

All the dev has to do is make a few data structures and load them into the swadgeMode_t struct. This will automatically initialize the system.

Trophies are drawn from either the top or the bottom of the screen, and the duration they're on screen can be adjusted. All NVS activity is handled for the Dev.

The trophy system

Like Cthulu creeping into your mind, the trophy system sits on top of the swadge mode. It's always there, but sits disabled unless explicitly set active by a developer. To activate it, create the following structs in the .c file for the mode:

// Modify the following with your trophies
const trophyData_t trophyTestModeTrophies[] = {
    {
        .title       = "Trigger Trophy",
        .description = "You pressed A!",
        .image       = KID_0_WSG,
        .type        = TROPHY_TYPE_TRIGGER,
        .difficulty  = TROPHY_DIFF_EASY,
        .maxVal      = 1, // For trigger type, set to one
    },
    {
        .title       = "Additive Trophy - Testing a very long trophy na",
        .description = "Pressed B ten times!",
        .image       = KID_1_WSG,
        .type        = TROPHY_TYPE_ADDITIVE,
        .difficulty  = TROPHY_DIFF_HARD,
        .maxVal      = 10,
    },
    {
        .title       = "Progress Trophy",
        .description = "Hold down the up button for eight seconds",
        .image       = NO_IMAGE_SET,
        .type        = TROPHY_TYPE_PROGRESS,
        .difficulty  = TROPHY_DIFF_EXTREME,
        .maxVal      = 8,
        .hidden      = true, // If set to true, the trophy isn't drawn in the trophy case
        .noImage     = true, // Set this to true to remove image from the trophy alltogether
    },
    {
        .title       = "Checklist",
        .description = "This is gonna need a bunch of verification, but like has a very long description",
        .image       = NO_IMAGE_SET, // If set like this, it will draw a default trophy based on difficulty
        .type        = TROPHY_TYPE_CHECKLIST,
        .difficulty  = TROPHY_DIFF_HARD,
        .maxVal      = 0x0007, // Three tasks, 0x01, 0x02, and 0x04
    },
};

// Individual mode settings
trophySettings_t trophyTestModeTrophySettings = {
    .drawFromBottom   = false,
    .staticDurationUs = DRAW_STATIC_US * 2,
    .slideDurationUs  = DRAW_SLIDE_US,
};

// This is passed to the swadgeMode_t
trophyDataList_t trophyTestData = {.settings = &trophyTestModeTrophySettings,
                                   .list = trophyTestModeTrophies,
                                   .length = ARRAY_SIZE(trophyTestModeTrophies)};

// swadgeMode_t
swadgeMode_t trophyTestMode = {.modeName      = modeName,
                               .wifiMode      = NO_WIFI,
                               //...
                               .fnAdvancedUSB = NULL,
                               .trophyData    = &trophyTestData}; // This line activates the trophy for this mode

This will allow the trophy system to access your trophies and make sure the right text and images are displayed when a trophy is triggered.

Settings

There are four settings that can be set for the mode overall:

trophySettings_t.drawFromBottom : If set to true, draws the banner at the bottom
trophySettings_t.staticDurationUs : How long the banner stays on screen for. The default value, DRAW_STATIC_US, is about half a second
trophySettings_t.slideDurationUs : How long it takes for the banner to slide in and out. Set to DRAW_SLIDE_US for quarter second slide, or 0 to have the banner pop in.
trophySettings_t.namespaceKey : A text string used to save data to the NVS. This is set automatically if left blank, and should only be manually set when there's a conflict between modes

These can be loaded into the settings struct as shown above.

Individual trophy settings

The largest portion of the work required to set up the trophies it to create all the trophies from scratch. Here's the types of data available to set for each individual trophy:

trophyData_t.title : The name of the trophy. Make it unique! This is used as the identifier and having two of the same names will confuse the program. There's no need to worry about sharing the name with other modes though, that's handled internally.
trophyData_t.description : Displays text to help the player figure out how to get the trophy. Text-box size is limited, and too long descriptions will get truncated. Descriptions can be off-topic, but may confuse players.
trophyData_t.image : Provide index of a image up to 36 x 36 to be used. Use "NO_IMAGE_SET" to get a default image or no image at all. See .noImage below.
trophyData_t.type : See type descriptions below
trophyData_t.difficulty : Instead of setting specific values, set the expected difficulty and the program will automatically assign score based on the number of trophies in the mode and their relative difficulty.
trophyData_t.maxVal : Depending on the type, this number is the value that the player is trying to get to. See the type discussion below for more info.
trophyData_t.hidden : If set to true, does not appear in lists of trophies until won.
trophyData_t.noImage : If set to true, does not draw an image for this trophy.
trophyData_t.identifier : This is a convenience identifier not used by the Trophy code. It can be set to a pointer value or an integer cast to intptr_t and used by the Swadge Mode to find a specific trophy in a list of trophyData_t[].

Warning: NVS keys have a max length of 15 characters. Trophies with the same first 15 character will have conflicts

Types of trophies:

TROPHY_TYPE_TRIGGER : Only required to trigger once. These are best suited to trophies that are secrets, milestones, etc.
TROPHY_TYPE_ADDITIVE : Each time update is called, adds to the tracker until the max value is reached. Useful for lifetime stats.
TROPHY_TYPE_PROGRESS : Each time the trophy is updated, it takes the highest value and uses that. This is best for trophies that are expected to be completed in a single run, such as farthest distance climbed in a race or highest amount of coins collected per life.
TROPHY_TYPE_CHECKLIST : When a trophy is updated, it sets bits based on task ID. This allows unique tasks to be separated off, such as visiting all games or collecting all types of gems, not just a quantity of gems. Checklists can also be "unchecked" in case the player has to balance two things, like having two torches lit at the same time. Checklists have a hard limit of 32 flags.

A special "All trophies gotten" trophy is automatically generated when the first standard trophy is generated.

Updating the Trophy

Use either trophyUpdate() or trophyUpdateMilestone() to update the status of the trophy. If the trophy is a 'Trigger' type, it will automatically set the trophy to having been won regardless of the value entered. If the trophy is either 'Additive' or 'Progress' modes, it will either add or replace the previous value if appropriate. Lastly, if it's a checklist, you can use either the standard update command or trophySetChecklistTask() to shortcut needing to set bit flags yourself.

If the developer wants to update quietly, there is a argument to disable drawing. This allows for times when the banner would cause issues (the middle of a boss fight, for example) to have the drawing disabled without stopping the whole trophy system.

Using the milestone system, the program will automatically display trophy progress at the set percentage thresholds. This is great for trophies that have frequent updates and wish to display only sometimes. An example would be if counting eggs found up to 100, you may only want to update every 10 eggs rather than each egg to avoid spamming banners at the player.

Here's some important notes on sending updates:

No overflow protection: The internal data is always saved as an int32_t, not a uint32_t. Negative values are currently not supported.
If the first fifteen characters of NVS Namespace or two or more trophy names inside the same mode there will be data clashes
Does not save values once trophy is won. For example, if 10 key presses unlocks a trophy, even if a hundred presses are registered, the number 10 will be saved to NVS. However, some cases the value saved may be higher than the max Value expected.
When testing, renaming and reordering trophies (especially items inside a checklist) may cause hard to discover errors. You may have to clear NVS on ESP32 / delete the nvs.json file for the emulator to fix issues.
Only update as often as you need: While the trophy system has a few safeguards, if you're asking it to update every centimeter moved forward in a marathon, you're going to be doing a lot of writes, which could harm the swadge
Every trophyUpdate() call has the potential to save to NVS. NVS has a limited amount of writes over it's lifetime which we're not likely to hit, but maybe don't hammer the NVS by incrementing by one every frame. Only update when reasonable. The code will cut out a lot of frivolous requests such as:
- Trying to update trophy after it's been won
- Trying to save the same value into NVS
- Trying to save a lower value into NVS (Unless it's a Checklist. You can un-check Checklists)
In the above cases, it's safe to keep the update code running without issue, but incrementing by one every frame may cause slowdowns as there is a memory allocation that goes along with saving data.

Once set, the value can be pulled back out by running trophyGetSavedValue().

The last won trophy is saved to the NVS for later use.

Helper functions

Several helper functions exist for the developer to get critical information

checkBitFlag() & setBitFlag(): Two complimentary functions to handle that pesky bit shifting
trophyGetPoints(): Get either the total number of points for this mode of for the entire swadge
trophyGetLatest(): Returns the last saved trophy
trophySetSystemData(): Sets the trophy System to the same as provided mode. Used primarily by Trophy Case mode.

Drawing a trophy

The Swadge will automatically display trophies as they're unlocked. You do not need to provide draw calls, it is handled automatically.

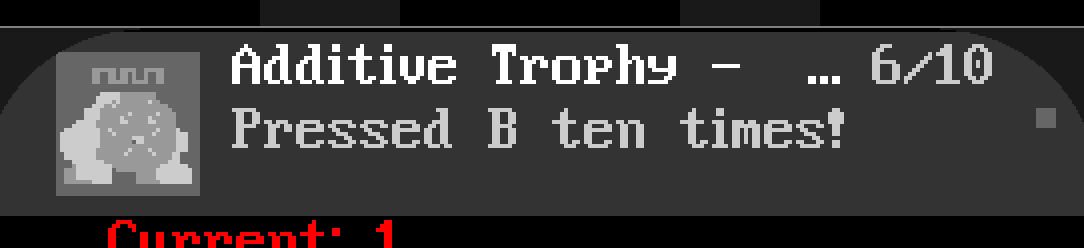

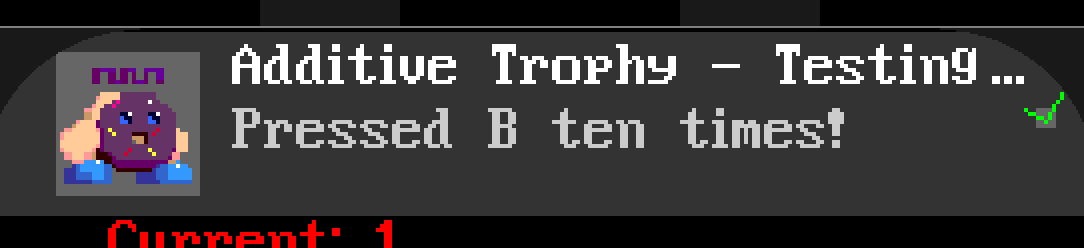

The banner notifications look like this:

The banner will scroll in from the top by default, but can be set to the bottom in the settings. See system initialization. The banner will be fully visible for the set duration, not including scroll in and scroll out duration.

Banners will automatically queue up. A significant number of calls may slow down the swadge as it has to allocate data for each update.

Drawing all the trophies

A trophy 'gallery' type function has been provided. Initialize with trophyDrawListInit(), set the colors with trophyDrawListColors(), and display with trophyDrawList(). It displays a long list that can be scrolled by providing new y values. Remember to deinit the list with trophyDrawListDeinit() to cover any memory leaks.

In addition, there is an auto-populating Trophy Case mode where this is already done for you, so you can go to see the trophy data. Anything marked hidden will not be shown in there. Trophies can be sorted by unlocked, locked, or all.

Clearing a trophy

Reset a trophy to 0 (but don't remove it from the list of trophies) with trophyClear().

Trophies should only be cleared under abnormal circumstances, such as the player having been caught cheating. Consider that the Steamworks API (Valve) has a "Remove trophy" function, yet most people have never lost an trophy.

Clearing a trophy will delete the points acquired if it was previously won.

Go to the source code of this file.

Data Structures
struct	trophyData_t
	Individual Trophy data objects. More...

struct	trophySettings_t
	Settings for the trophy system. More...

struct	trophyDataList_t
	The data object dev hands to the trophy showcase that contains all the const data. More...

Macros
#define	TROPHY_MAX_TITLE_LEN 48
	The longest possible name for a trophy.

#define	TROPHY_MAX_DESC_LEN 128
	The longest possible description for a trophy.

#define	DRAW_SLIDE_US 262144
	Recommended slide time, a power of 2 about a quarter second.

#define	DRAW_STATIC_US 524288
	Recommended static time, a power of 2 about a half second.

#define	NO_IMAGE_SET CNFS_NUM_FILES
	Special value for trophyData_t.image to indicate no image.

Enumerations
enum	trophyType_t { TROPHY_TYPE_TRIGGER , TROPHY_TYPE_ADDITIVE , TROPHY_TYPE_PROGRESS , TROPHY_TYPE_CHECKLIST }
	Types of trophies the devs can instantiate. More...

enum	trophyDifficulty_t { TROPHY_DIFF_FINAL , TROPHY_DIFF_EASY , TROPHY_DIFF_MEDIUM , TROPHY_DIFF_HARD , TROPHY_DIFF_EXTREME }
	Dev inferred difficulty of achieving, used to distribute points. More...

enum	trophyListDisplayMode_t { TROPHY_DISPLAY_ALL , TROPHY_DISPLAY_UNLOCKED , TROPHY_DISPLAY_LOCKED , TROPHY_DISPLAY_INCL_HIDDEN }
	What display mode to use to draw trophies. More...

Functions
void	trophySystemInit (trophyDataList_t settings, const char modeName)
	Initializes the Trophy system settings. The system is a global setting and every mode needs to set this when entered to avoid copying from other modes.

bool	trophyUpdate (trophyData_t t, int newVal, bool drawUpdate)
	Updates specifed trophy if required.

bool	trophyUpdateMilestone (trophyData_t t, int newVal, int threshold)
	Updates just like `trophyUpdate()`, but only draws when crossing percentage boundary.

int32_t	trophyGetSavedValue (trophyData_t t)
	Returns the value saved to the NVS or 0 if the key isn't found.

bool	trophySetChecklistTask (trophyData_t t, int32_t flag, bool unset, bool drawUpdate)
	Sets or unsets a checklist item.

void	trophyClear (trophyData_t t)
	Erases completion data from swadge. Only use in extreme circumstances.

bool	checkBitFlag (int32_t flags, int8_t idx)
	Checks an individual bit flag out of a int32.

void	setBitFlag (int32_t *flags, int8_t idx, bool setTrue)
	Set a bit flag.

int	trophyGetPoints (bool total, const char *modeName)
	Get the point totals for the gamer score.

trophyData_t	trophyGetLatest (void)
	Get the Latest Trophy Idx object.

void	trophySetSystemData (trophyDataList_t dl, const char modeName)
	Set the Trophy System to a specific mode's values.

void	trophyDraw (font_t *fnt, int64_t elapsedUs)
	Draws the banner if one is queued.

void	trophyDrawListInit (trophyListDisplayMode_t mode)
	Initialize the trophy Draw list.

void	trophyDrawListColors (paletteColor_t background, paletteColor_t panel, paletteColor_t shadowBoxes, paletteColor_t dimText, paletteColor_t titleText, paletteColor_t checkmark)
	Set the colors of the panel to custom. Call after initialization of the list, or it'll be overwritten.

void	trophyDrawListDeinit (void)
	Tears down the WSGs and height list.

void	trophyDrawList (font_t *fnt, int yOffset)
	Draws the list.

bool	isTrophyDrawing (void)
	Check if a trophy is currently being drawn.

Data Structure Documentation

◆ trophyData_t

struct trophyData_t

Data Fields
char	title[TROPHY_MAX_TITLE_LEN]	Name of the Trophy, used as ID.
char	description[TROPHY_MAX_DESC_LEN]	Short description of task required.
cnfsFileIdx_t	image	Index of the image.
trophyType_t	type	Type of trophy. See "trophy.h" for descriptions.
trophyDifficulty_t	difficulty	How many points the trophy is worth.
int32_t	maxVal	The value that.
bool	hidden	If trophy is hidden by default.
bool	noImage	If trophy will use an image.
const void *	identifier	An optional identifier to find trophy data. May be set to a pointer or an integer cast to `intptr_t`

◆ trophySettings_t

struct trophySettings_t

Data Fields
bool	drawFromBottom	If banner should be drawn from the bottom of the screen.
int32_t	staticDurationUs	How long the banner will be drawn fully extended.
int32_t	slideDurationUs	How long the banner will take to slide in and out.
char	namespaceKey[NVS_KEY_NAME_MAX_SIZE]	key used for trophy namespace

◆ trophyDataList_t

struct trophyDataList_t

Data Fields
int32_t	length	Length of the trophy arrays.
const trophyData_t *const	list	Array of trophies.
trophySettings_t *	settings	Setting data.

Macro Definition Documentation

◆ TROPHY_MAX_TITLE_LEN

#define TROPHY_MAX_TITLE_LEN 48

The longest possible name for a trophy.

◆ TROPHY_MAX_DESC_LEN

#define TROPHY_MAX_DESC_LEN 128

The longest possible description for a trophy.

◆ DRAW_SLIDE_US

#define DRAW_SLIDE_US 262144

Recommended slide time, a power of 2 about a quarter second.

◆ DRAW_STATIC_US

#define DRAW_STATIC_US 524288

Recommended static time, a power of 2 about a half second.

◆ NO_IMAGE_SET

#define NO_IMAGE_SET CNFS_NUM_FILES

Special value for trophyData_t.image to indicate no image.

Enumeration Type Documentation

◆ trophyType_t

enum trophyType_t

Types of trophies the devs can instantiate.

Enumerator
TROPHY_TYPE_TRIGGER	Only needs to be triggered once (Did a handstand, found a hidden message)
TROPHY_TYPE_ADDITIVE	Each update adds to the previous (Lifetime distance, number of cakes eaten)
TROPHY_TYPE_PROGRESS	Tracks how far a user got per update (How long player survived, how far player ran)
TROPHY_TYPE_CHECKLIST	Each bit is a flag for a specific action. Repeating actions does not increment. (Used for collecting different objects, like chaos emeralds)

◆ trophyDifficulty_t

enum trophyDifficulty_t

Dev inferred difficulty of achieving, used to distribute points.

Enumerator
TROPHY_DIFF_FINAL	Only used by the trophy System. Will break normal trophies.
TROPHY_DIFF_EASY	The easiest trophies to unlock.
TROPHY_DIFF_MEDIUM	A bit more difficult to unlock than TROPHY_DIFF_EASY.
TROPHY_DIFF_HARD	A trophy that takes serious skill to unlock.
TROPHY_DIFF_EXTREME	A trophy that takes skill, dedication, and insanity to unlock.

◆ trophyListDisplayMode_t

enum trophyListDisplayMode_t

What display mode to use to draw trophies.

Enumerator
TROPHY_DISPLAY_ALL	Display locked and unlocked trophies, but not hidden ones.
TROPHY_DISPLAY_UNLOCKED	Display only unlocked trophies.
TROPHY_DISPLAY_LOCKED	Display only locked trophies.
TROPHY_DISPLAY_INCL_HIDDEN	Display locked, unlocked, and hidden trophies.

Function Documentation

◆ trophySystemInit()

void trophySystemInit	(	trophyDataList_t *	settings,
		const char *	modeName )

Initializes the Trophy system settings. The system is a global setting and every mode needs to set this when entered to avoid copying from other modes.

Parameters

settings	The settings data
modeName	Name of the mode

◆ trophyUpdate()

bool trophyUpdate	(	trophyData_t	t,
		int	newVal,
		bool	drawUpdate )

Updates specifed trophy if required.

Parameters

t	Trophy to update
newVal	New value to try to set. Behavior is set by trophy type
drawUpdate	If this update should be drawn to the screen

Returns: true if a notification is being drawn, false otherwise

◆ trophyUpdateMilestone()

bool trophyUpdateMilestone	(	trophyData_t	t,
		int	newVal,
		int	threshold )

Updates just like trophyUpdate(), but only draws when crossing percentage boundary.

Parameters

t	Trophy to update
newVal	Value to attempt to set
threshold	Value (0-100, representing a percent) to draw at

Returns: true if a notification is being drawn, false otherwise

◆ trophyGetSavedValue()

int32_t trophyGetSavedValue ( trophyData_t t )

Returns the value saved to the NVS or 0 if the key isn't found.

Parameters

t	Trophy to grab value for

Returns: int32_t Stored value for the requested trophy

◆ trophySetChecklistTask()

bool trophySetChecklistTask	(	trophyData_t	t,
		int32_t	flag,
		bool	unset,
		bool	drawUpdate )

Sets or unsets a checklist item.

Parameters

t	Trophy to set
flag	Task that was just completed
unset	If we're unsetting the bit
drawUpdate	If this update should be drawn

Returns: true if a notification is being drawn, false otherwise

◆ trophyClear()

void trophyClear ( trophyData_t t )

Erases completion data from swadge. Only use in extreme circumstances.

Parameters

t	Trophy to set to 0

◆ checkBitFlag()

bool checkBitFlag	(	int32_t	flags,
		int8_t	idx )

Checks an individual bit flag out of a int32.

Parameters

flags	int32 containing the flag to check
idx	Index of the bit

Returns: true If bit is set; false If bit is not set

◆ setBitFlag()

void setBitFlag	(	int32_t *	flags,
		int8_t	idx,
		bool	setTrue )

Set a bit flag.

Parameters

flags	pointer to variable to store flags
idx	Index of the bit to set
setTrue	Set to false to unset the

◆ trophyGetPoints()

int trophyGetPoints	(	bool	total,
		const char *	modeName )

Get the point totals for the gamer score.

Parameters

total	If loading the full score or for the current mode
modeName	Mode name to load. Set to NULL to get currently loaded mode

Returns: int Value of the score

◆ trophyGetLatest()

trophyData_t trophyGetLatest ( void )

Get the Latest Trophy Idx object.

Returns: trophyData_t data for the latest win

◆ trophySetSystemData()

void trophySetSystemData	(	trophyDataList_t *	dl,
		const char *	modeName )

Set the Trophy System to a specific mode's values.

Parameters

dl	Data object from the mode
modeName	Name of the mode

◆ trophyDraw()

void trophyDraw	(	font_t *	fnt,
		int64_t	elapsedUs )

Draws the banner if one is queued.

Parameters

fnt	Font to be used
elapsedUs	Time since last frame

◆ trophyDrawListInit()

void trophyDrawListInit ( trophyListDisplayMode_t mode )

Initialize the trophy Draw list.

Parameters

mode	What display mode to draw

◆ trophyDrawListColors()

void trophyDrawListColors	(	paletteColor_t	background,
		paletteColor_t	panel,
		paletteColor_t	shadowBoxes,
		paletteColor_t	dimText,
		paletteColor_t	titleText,
		paletteColor_t	checkmark )

Set the colors of the panel to custom. Call after initialization of the list, or it'll be overwritten.

Parameters

background	Color of the background behind the panels
panel	The main panel color
shadowBoxes	The check box and image shadowbox colors
dimText	Description text and numbers
titleText	Title of the trophy
checkmark	Color of the checkmark

◆ trophyDrawListDeinit()

void trophyDrawListDeinit ( void )

Tears down the WSGs and height list.

◆ trophyDrawList()

void trophyDrawList	(	font_t *	fnt,
		int	yOffset )

Draws the list.

Parameters

fnt	Font to use
yOffset	Current Y offset. Higher numbers effectively scroll down

◆ isTrophyDrawing()

bool isTrophyDrawing ( void )

Check if a trophy is currently being drawn.

Returns: true if a trophy is being drawn, false otherwise

Detailed Description

Overview

The trophy system

Settings

Individual trophy settings

Updating the Trophy

Helper functions

Drawing a trophy

Drawing all the trophies

Clearing a trophy

Data Structures

Macros

Enumerations

Functions

Data Structure Documentation

◆ trophyData_t

◆ trophySettings_t

◆ trophyDataList_t

Macro Definition Documentation

◆ TROPHY_MAX_TITLE_LEN

◆ TROPHY_MAX_DESC_LEN

◆ DRAW_SLIDE_US

◆ DRAW_STATIC_US

◆ NO_IMAGE_SET

Enumeration Type Documentation

◆ trophyType_t

◆ trophyDifficulty_t

◆ trophyListDisplayMode_t

Function Documentation

◆ trophySystemInit()

◆ trophyUpdate()

◆ trophyUpdateMilestone()

◆ trophyGetSavedValue()

◆ trophySetChecklistTask()

◆ trophyClear()

◆ checkBitFlag()

◆ setBitFlag()

◆ trophyGetPoints()

◆ trophyGetLatest()

◆ trophySetSystemData()

◆ trophyDraw()

◆ trophyDrawListInit()

◆ trophyDrawListColors()

◆ trophyDrawListDeinit()

◆ trophyDrawList()

◆ isTrophyDrawing()
